90° bend PT38 FT

Item no. / Types

Width

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

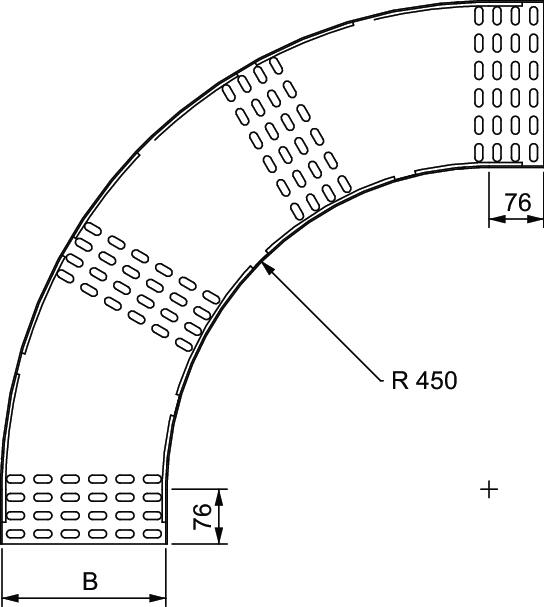

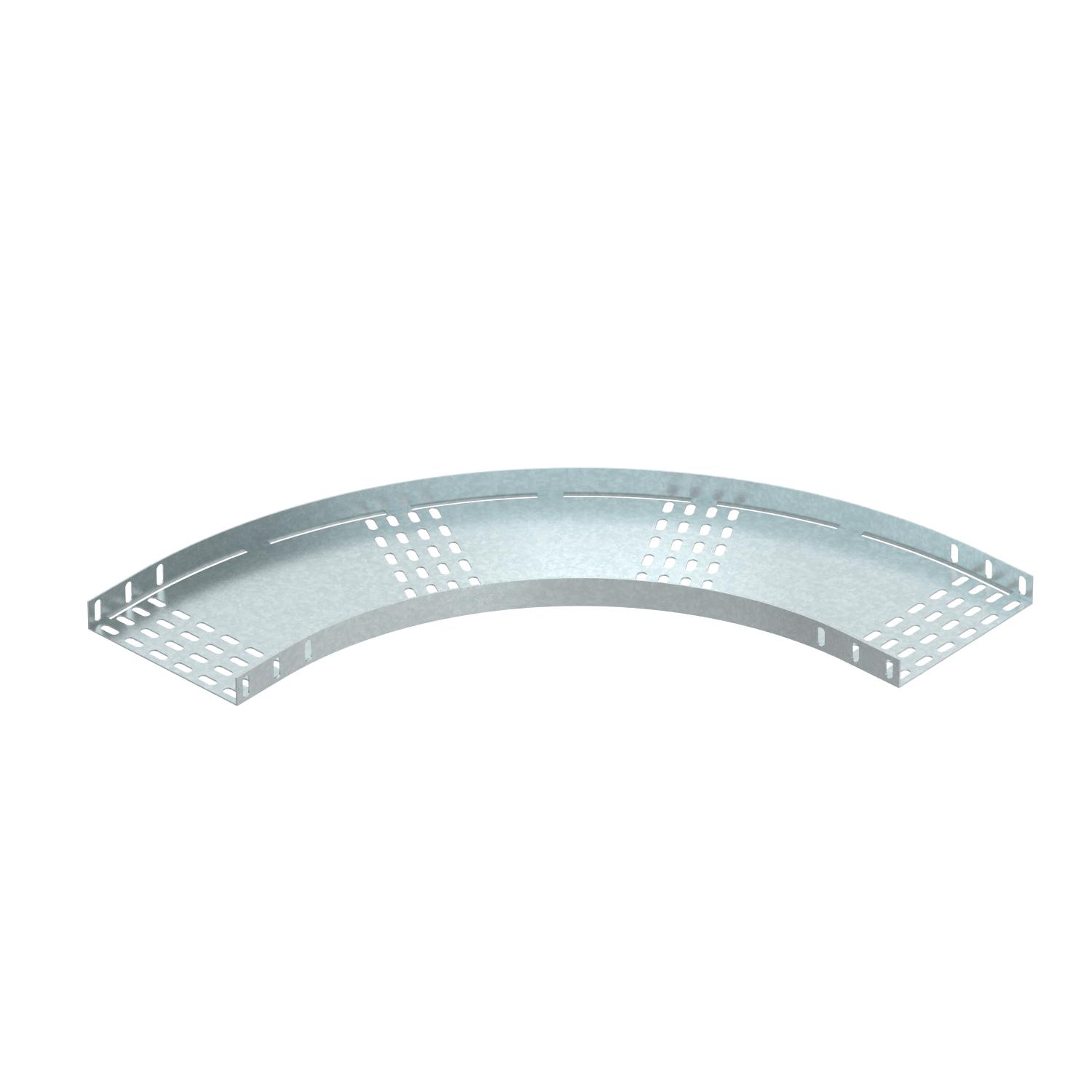

90° bend, horizontal, for the cable tray types PT38.

Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Plate thickness	1,6 mm
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Width	76 mm

All types

All types

Types	Width	Material	Surface	Item no.	SSU
PT38 76 HDG	76 mm	Steel	Hot-dip galvanised	6900343	1
PT38 114 HDG	114 mm	Steel	Hot-dip galvanised	6900347	1
PT38 152 HDG	152 mm	Steel	Hot-dip galvanised	6900351	1
PT38 228 HDG	228 mm	Steel	Hot-dip galvanised	6900355	1
PT38 304 HDG	304 mm	Steel	Hot-dip galvanised	6900359	1
