90° bend PS100 FT

Item no. 6903753 | EAN 4012196071333

Item no. / Types

Width

Rail thickness	2 mm

Product description

Product description

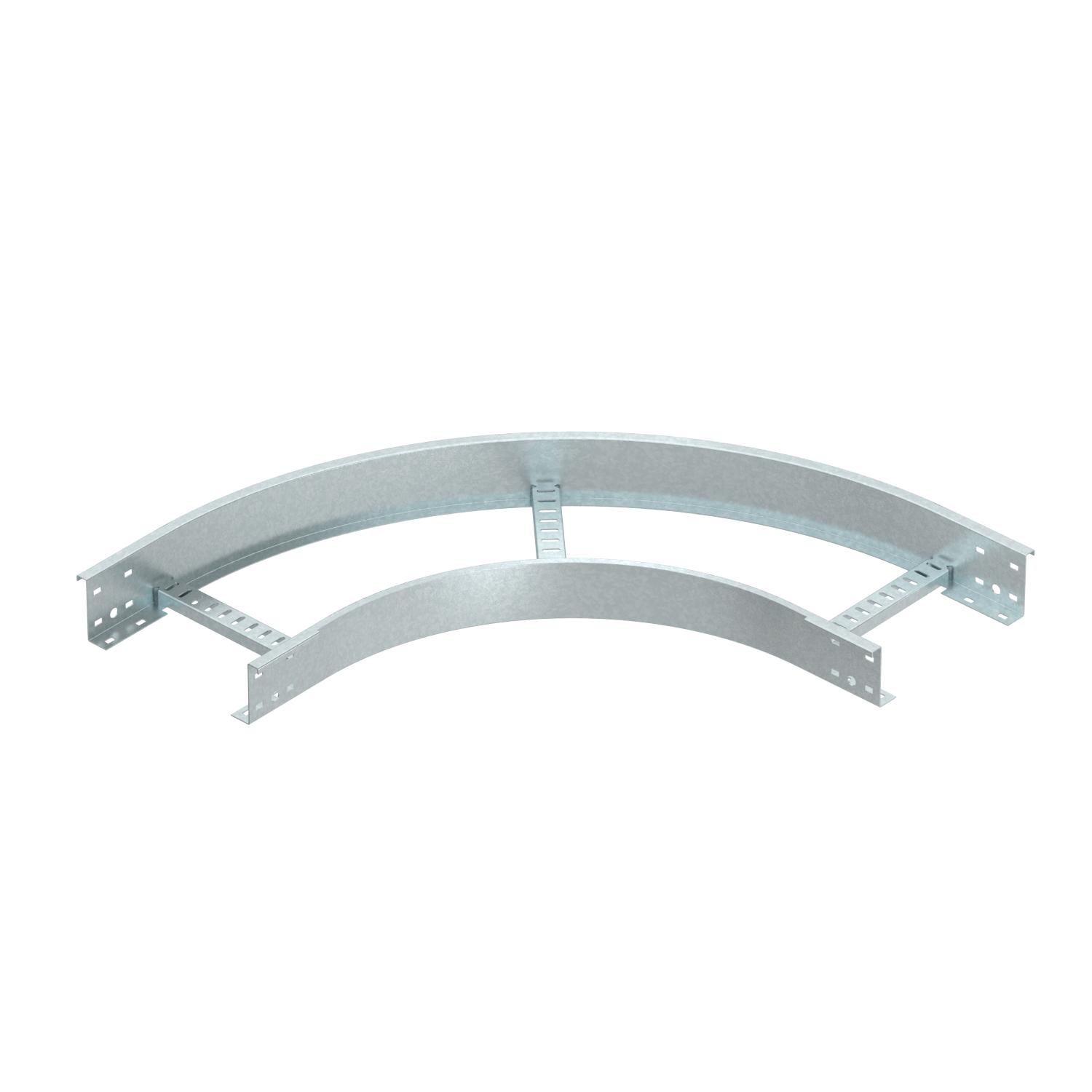

90° bend, horizontal, for all PS100 cable ladder types of 100 mm side height.

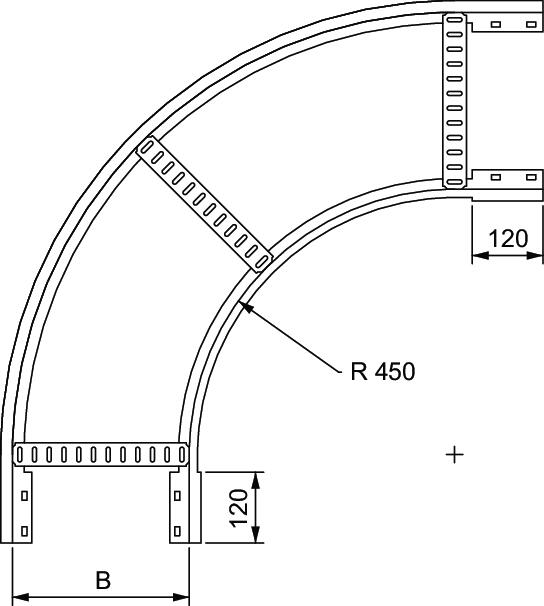

Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Dimension	770x770x100
Height	100 mm

Material	Steel
Rail thickness	2 mm
Surface	Hot-dip galvanised
Width	150 mm

All types

All types

Types	Width	Rail thickness	Item no.	SSU
PS100 150 HDG	150 mm	2 mm	6903753	1
PS100 200 HDG	200 mm	2 mm	6903757	1
PS100 300 HDG	300 mm	2 mm	6903761	1
PS100 400 HDG	400 mm	2 mm	6903765	1
PS100 500 HDG	500 mm	2 mm	6903769	1
PS100 600 HDG	600 mm	2 mm	6903773	1
PS100 800 HDG	800 mm	2 mm	6903777	1
PS100 1000 HDG	1000 mm	2 mm	6903781	1
