90° bend OL76 FT

Item no. 6902857 | EAN 4012196069156

Item no. / Types

Width

Rail thickness

Product description

Product description

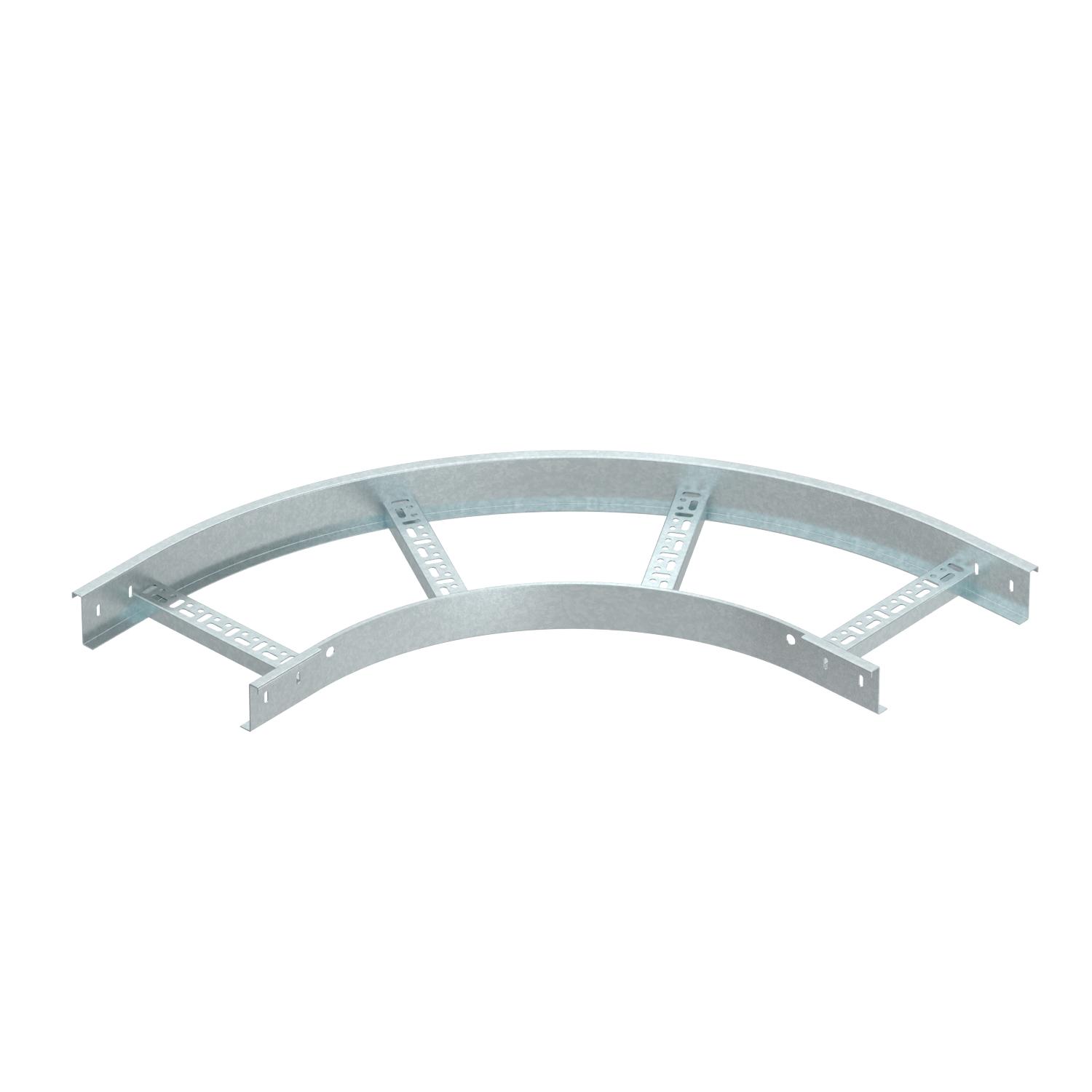

90° bend, horizontal, for all OL76 cable ladder types of 76 mm side height.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Technical data

Dimension	745x745x80
Height	76 mm
Material	Steel

Rail thickness	1,6 mm
Surface	Hot-dip galvanised
Width	150 mm

All types

All types

Types	Width	Rail thickness	Item no.	SSU
OL76 150 HDG	150 mm	1.6 mm	6902857	1
OL76 200 HDG	200 mm	1.6 mm	6902861	1
OL76 300 HDG	300 mm	1.6 mm	6902865	1
OL76 400 HDG	400 mm	1.6 mm	6902869	1
OL76 500 HDG	500 mm	2 mm	6902871	1
OL76 600 HDG	600 mm	2 mm	6902873	1
OL76 800 HDG	800 mm	2 mm	6902877	1
OL76 1000 HDG	1000 mm	2 mm	6902881	1
