90° bend 75 DS75

Item no. / Types

Width

Product description

Product description

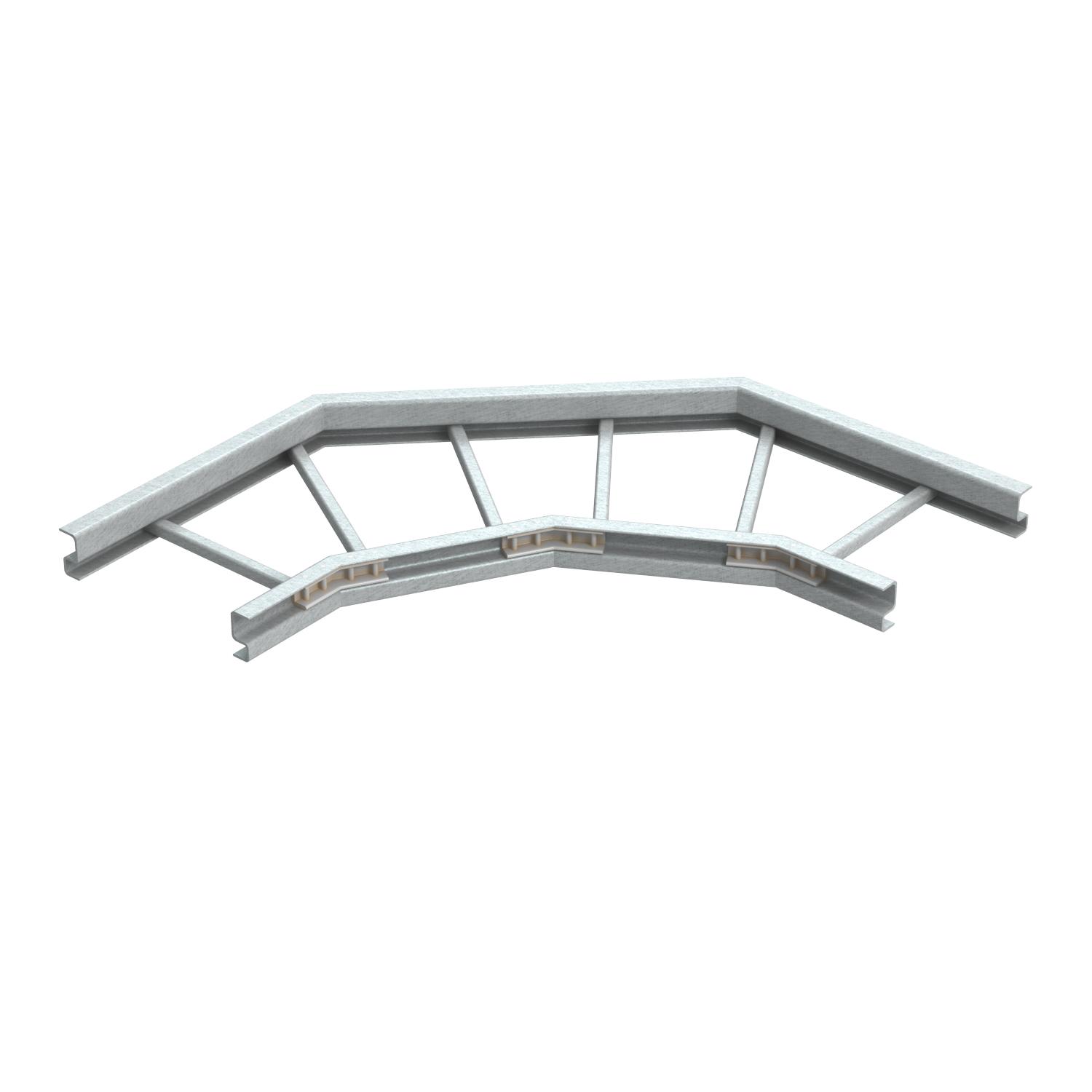

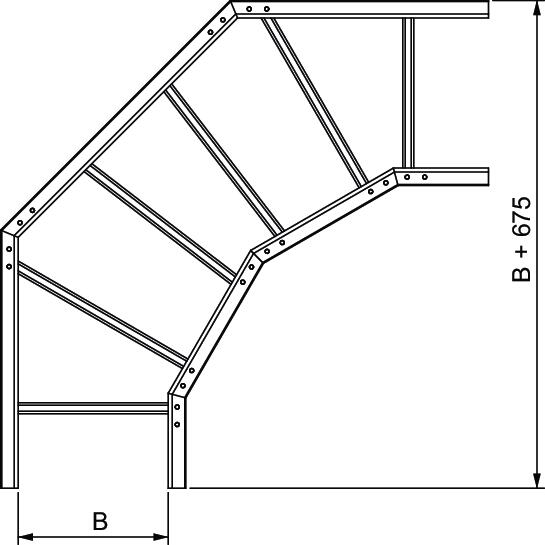

90° bend, horizontal, for all DS75 cable ladder types of 75 mm side height.
Accessory radius = 450 mm. Not available in other radiuses.

Technical data

Height	75 mm
Material	Fibre-glass-reinforced plastic
Width	150 mm

All types

All types

Types	Width	Item no.	SSU
DS75 150 GRP	150 mm	6908353	1
DS75 300 GRP	300 mm	6908357	1
DS75 450 GRP	450 mm	6908361	1
DS75 600 GRP	600 mm	6908365	1
DS75 750 GRP	750 mm	6908369	1
DS75 900 GRP	900 mm	6908373	1

Downloads

Data sheet DS75 150 GRP / 6908353 , 0.09MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

DS75 150 GRP / 6908353
