Note: This article is discontinued.
90° bend 60 FS
Item no. 6043232 | EAN 4012196050598
- Product description
-

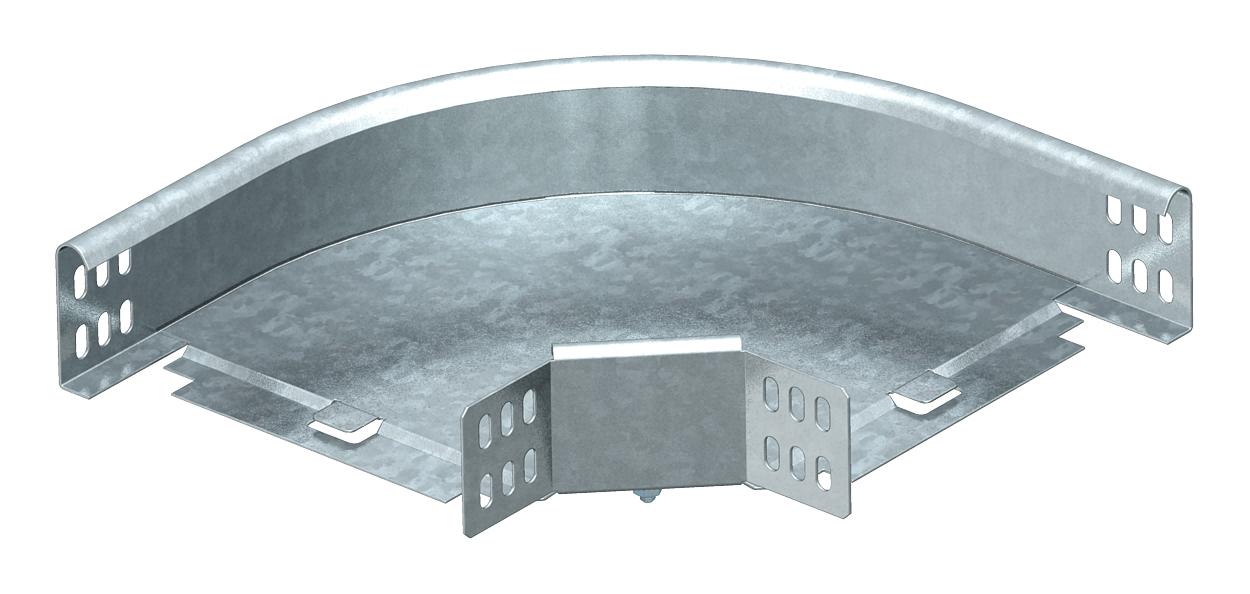

Product description90° bend, horizontal, for all cable tray types of 60 mm side height.
-
- Technical data
-
Technical data

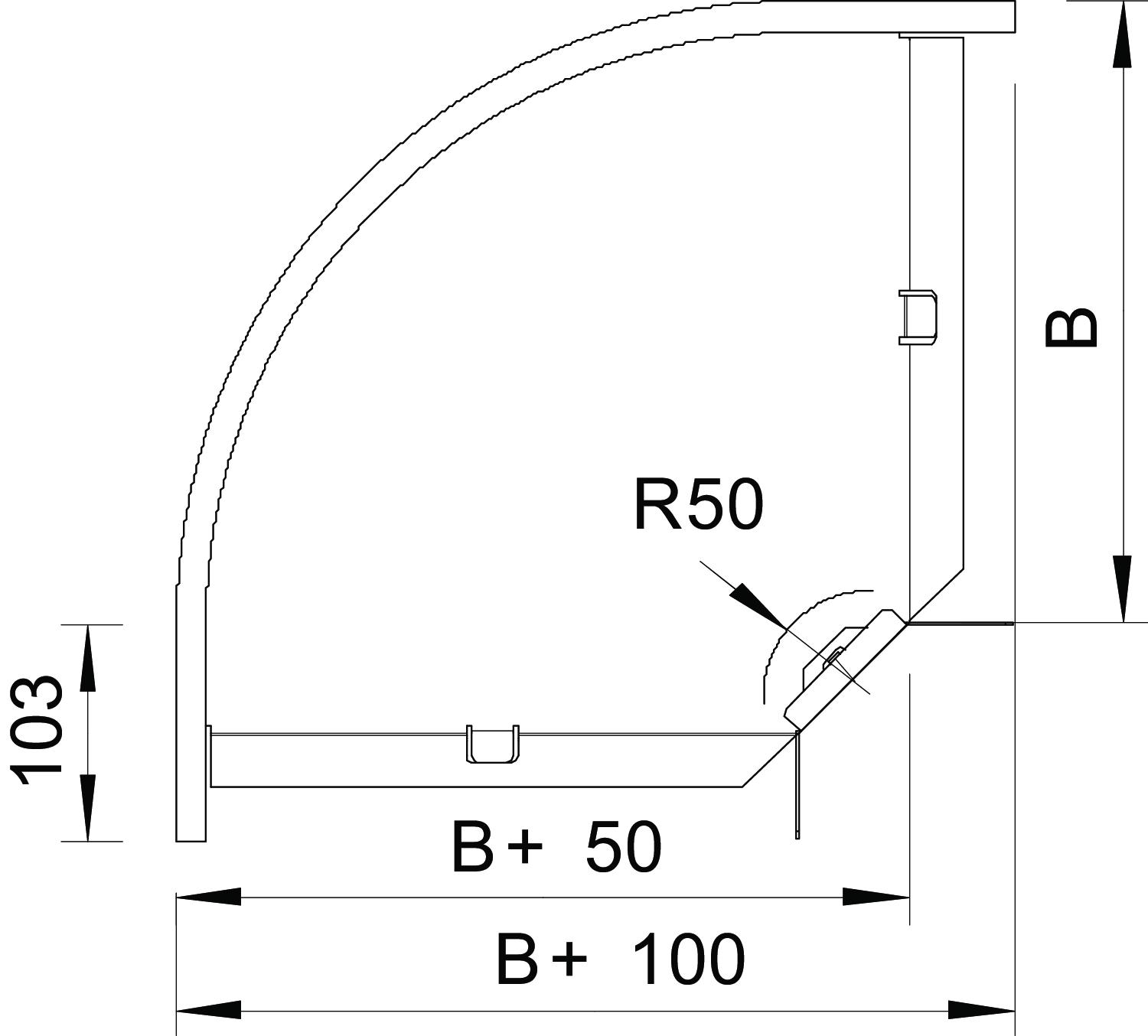

Bend (angle) 90° Change of direction Horizontal Connector version Supplied connectors Dimension 60x300 Dimension B 300 mm Dimension R 50 mm Height 2 in Height 60 mm Maintain electrical functions yes Material Steel Mounting perforation in base no NATO hole pattern no Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type of connector, cable support system Screwed Wide-span version no Width 12 in Width 300 mm - All types
- Downloads
-
Data sheet RB 90 630 FS / 6043232 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RB 90 630 FS / 6043232 , 0.10MB , pdfREACH Declaration of conformity RB 90 630 FS / 6043232 , 0.12MB , pdfRoHS Declaration of conformity RB 90 630 FS / 6043232 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
